CMV Process for Large Time Series
When applying the field analysis methodology, there is often an extensive dataset available showing, e.g. time series data for a plant over the course of an entire year or longer. In order to apply the method, it is necessary to obtain reduce the CMVs to a subset for which the method can be applied, because simply calculating for every possible cloud motion vector pair is computationally intractable.
This notebook will demonstrate the process for downselecting a set of interesting CMVs according to the methodology discussed in the 2024 IEEE PVSC paper.
Initialization
First we need to import relevant packages.
[1]:
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import pvlib
from solarspatialtools import stats, spatial, cmv
The Data

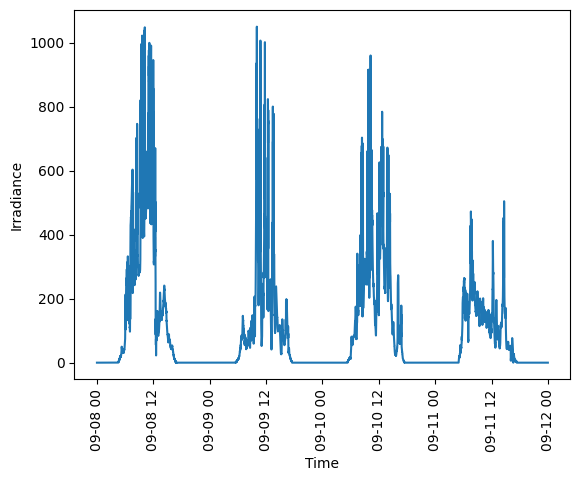

For this example, we will work on four days of 10s resolution data from the HOPE Melpitz campaign, included in the sample data package. We’ll first read it in. Since the CMV routine is built to work on the clearsky index, we’ll calculate that while we’re at it. The plot shows a sample of the data for a single sensor over the four days.
[2]:
fn = 'data/hope_melpitz_10s.h5'
pos = pd.read_hdf(fn, mode="r", key="latlon")
pos_utm = spatial.latlon2utm(pos['lat'], pos['lon'])
ts_data = pd.read_hdf(fn, mode="r", key="data")
loc = pvlib.location.Location(np.mean(pos['lat']), np.mean(pos['lon']))
cs_ghi = loc.get_clearsky(ts_data.index, model='simplified_solis')['ghi']
kt = ts_data.divide(cs_ghi, axis=0).clip(0,2)
# Plot a single sensor's data
plt.plot(ts_data.index, ts_data[40])
plt.xticks(rotation=90)
plt.xlabel('Time')
plt.ylabel('Irradiance')
plt.show()
Deciding which Periods to Calculate CMVs For

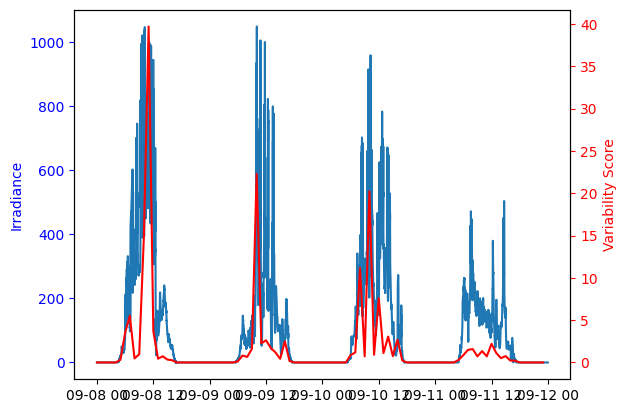

I typically calculate CMVs using a one hour period of data. While that’s viable for the whole four days here, it would rapidly become ornerous over e.g. an entire year, due to the computational intensity of the CMV method. One method to reduce the number of CMVs to calculate is to only calculate them for periods where the irradiance is changing rapidly, indicating the presence of clouds. Here we will use the Variability Score to quantify how variable each one hour period is in the data.
Note that the variability score calculation has a slightly weird form using lambda functions, because doing so can allow the calculation to be performed using the vectorized form of the code. Other techniques might be possible.
[9]:
avg_interval = '1h'
# Calc the VS for each 1 hour period
vs_all = ts_data.resample(avg_interval).apply(
lambda x: stats.variability_score(x[ts_data.columns]))
fig, ax = plt.subplots()
ax2 = ax.twinx()
ax.plot(ts_data.index, ts_data[40])
plt.xlabel('Time')
plt.xticks(rotation=90)
ax.set_ylabel('Irradiance', color='blue')
ax.tick_params(axis='y', colors='blue')
ax2.plot(vs_all.index, vs_all[40], 'r')
ax2.set_ylabel('Variability Score', color='red')
ax2.tick_params(axis='y', colors='red')
plt.show()
C:\Users\jrana\AppData\Local\Temp\ipykernel_8116\1689254596.py:5: FutureWarning: Series.__getitem__ treating keys as positions is deprecated. In a future version, integer keys will always be treated as labels (consistent with DataFrame behavior). To access a value by position, use `ser.iloc[pos]`
lambda x: stats.variability_score(x[ts_data.columns]))
Once we have a metric of variability, we can downselect to retain only the N most variable periods. Here we’ll use 20 just as an example.
[4]:
n_var = 20
vs = vs_all.median(axis=1).sort_values(ascending=False)
vs = vs.iloc[0:n_var]
print(vs)
2013-09-08 11:00:00+00:00 36.827512
2013-09-10 10:00:00+00:00 17.346362
2013-09-09 10:00:00+00:00 16.861423
2013-09-08 10:00:00+00:00 14.032438
2013-09-10 08:00:00+00:00 11.659271
2013-09-10 12:00:00+00:00 7.277602
2013-09-08 07:00:00+00:00 4.998409
2013-09-10 14:00:00+00:00 3.878509
2013-09-08 06:00:00+00:00 3.846806
2013-09-08 12:00:00+00:00 3.722167
2013-09-09 12:00:00+00:00 3.016234
2013-09-09 16:00:00+00:00 2.515403
2013-09-10 16:00:00+00:00 2.369758
2013-09-11 12:00:00+00:00 2.250612
2013-09-09 11:00:00+00:00 2.169986
2013-09-11 08:00:00+00:00 1.778225
2013-09-09 13:00:00+00:00 1.750230
2013-09-09 09:00:00+00:00 1.719327
2013-09-10 13:00:00+00:00 1.264782
2013-09-08 09:00:00+00:00 1.185312
dtype: float64
Calculating the CMVs
Now that we have a set of periods during which to calculate the CMV, we can loop over them to do the calculations. We also want to record some of the useful statistical and quality control information about the quality of the CMVs, because we’d later like to be able to determine which of these are of high quailty.
ngood - the number of point pairs that passed the Jamaly QC routines - r_corr - the correlation coefficient of separation vs. delay for the good point pairs (see cmv_demo.ipynb).flag - the overall flag from the CMV QC process[5]:
cmvs = pd.DataFrame(columns=["cld_spd", "cld_dir_rad", "df_p95", "ngood", "r_corr", "stderr_corr", "error_index", "flag"])
for date in vs.index:
# Select the subset of data
hour = pd.date_range(date, date + pd.to_timedelta('1h'), freq='10s')
kt_hour = kt.loc[hour]
hourlymax = ts_data.loc[hour].max().quantile(0.95)
# Compute the CMV using the Jamaly method
cld_spd, cld_dir, dat = cmv.compute_cmv(kt_hour, pos_utm, method='jamaly', options={'minvelocity': 1})
cmvs.loc[date] = [cld_spd, cld_dir, hourlymax, dat.method_data['ngood'], dat.method_data['r_corr'], dat.method_data['stderr_corr'], np.abs(dat.method_data["error_index"]), dat.flag.name]
pd.options.display.width = 800
print(cmvs)
cld_spd cld_dir_rad df_p95 ngood r_corr stderr_corr error_index flag
2013-09-08 11:00:00+00:00 17.253624 1.015742 1036.323712 306 0.990169 0.147371 0.102980 GOOD
2013-09-10 10:00:00+00:00 9.323374 0.446288 967.214252 624 0.970793 0.090337 0.128893 GOOD
2013-09-09 10:00:00+00:00 12.315270 5.789374 1105.664569 467 0.951945 0.197357 0.175704 GOOD
2013-09-08 10:00:00+00:00 15.790708 1.022334 1070.301172 781 0.872326 0.190603 0.202564 GOOD
2013-09-10 08:00:00+00:00 13.385675 0.736173 752.929056 581 0.989232 0.081722 0.082928 GOOD
2013-09-10 12:00:00+00:00 27.468773 0.515227 839.723816 412 0.978562 0.275288 0.122317 GOOD
2013-09-08 07:00:00+00:00 18.609486 0.871618 642.030344 797 0.992215 0.084133 0.081098 GOOD
2013-09-10 14:00:00+00:00 13.931439 0.698200 657.489758 756 0.943971 0.168528 0.195472 GOOD
2013-09-08 06:00:00+00:00 21.260689 0.833676 351.352144 680 0.993707 0.088246 0.086116 GOOD
2013-09-08 12:00:00+00:00 21.164760 0.558943 916.882816 90 0.873551 1.707730 0.241034 GOOD
2013-09-09 12:00:00+00:00 8.103066 5.511727 896.326129 623 0.966734 0.078114 0.110935 GOOD
2013-09-09 16:00:00+00:00 17.431592 0.077976 215.279455 491 0.807696 0.364491 0.137972 GOOD
2013-09-10 16:00:00+00:00 24.613327 0.378690 294.552469 578 0.960366 0.265352 0.146015 GOOD
2013-09-11 12:00:00+00:00 13.008833 0.057238 447.995486 772 0.983205 0.081499 0.100318 GOOD
2013-09-09 11:00:00+00:00 11.170620 0.140915 981.699747 933 0.919513 0.143933 0.240121 GOOD
2013-09-11 08:00:00+00:00 15.618439 1.117748 398.662215 760 0.825436 0.287277 0.173498 GOOD
2013-09-09 13:00:00+00:00 6.956777 5.610811 801.185779 860 0.879255 0.119534 0.306667 GOOD
2013-09-09 09:00:00+00:00 14.288631 5.987103 1088.490857 75 0.823863 1.168389 0.201482 GOOD
2013-09-10 13:00:00+00:00 31.678545 1.045541 675.928391 456 0.804433 0.710315 0.161430 GOOD
2013-09-08 09:00:00+00:00 18.401612 1.539226 1044.880005 689 0.970706 0.161717 0.092783 GOOD
Downselect to High Quality CMVs
We can now downselect to only the highest quality CMVs. The limits shown here are just for reference based off this dataset. They probably need to be tuned to each specific dataset to appropriately limit the CMVs. The printout shows the ones that failed the QC.
[6]:
ngood_min = 200
rval_min = 0.85
bad_inds = []
for row in cmvs.itertuples():
if row.ngood < ngood_min:
bad_inds.append(row.Index)
elif row.r_corr < rval_min:
bad_inds.append(row.Index)
elif row.flag != 'GOOD':
bad_inds.append(row.Index)
print(cmvs.loc[bad_inds])
cmvs = cmvs.drop(index=bad_inds)
cld_spd cld_dir_rad df_p95 ngood r_corr stderr_corr error_index flag
2013-09-08 12:00:00+00:00 21.164760 0.558943 916.882816 90 0.873551 1.707730 0.241034 GOOD
2013-09-09 16:00:00+00:00 17.431592 0.077976 215.279455 491 0.807696 0.364491 0.137972 GOOD
2013-09-11 08:00:00+00:00 15.618439 1.117748 398.662215 760 0.825436 0.287277 0.173498 GOOD
2013-09-09 09:00:00+00:00 14.288631 5.987103 1088.490857 75 0.823863 1.168389 0.201482 GOOD
2013-09-10 13:00:00+00:00 31.678545 1.045541 675.928391 456 0.804433 0.710315 0.161430 GOOD
Decide which CMVs make a representative set for Field Analysis
The field analysis requires vectors that are roughly perpendicular. So we will try to downselect to a set of CMVs that will give us a representative scatter across all directions. Since parallel and anti-parallel vectors are both disadvantageous here, we will rotate them all by 180 degrees. The function cmv.optimum_subset is capable of performing this optimization. For a real dataset, we might want to choose to keep around 10, but here we’ll use 5 just to show the downselection process.
[7]:
nfinal = 5
# Compute the x and y components of the CMVs for optimum_subset
vx, vy = spatial.pol2rect(cmvs.cld_spd, cmvs.cld_dir_rad)
indices = cmv.optimum_subset(vx, vy, n=nfinal)
print(cmvs.iloc[indices])
cld_spd cld_dir_rad df_p95 ngood r_corr stderr_corr error_index flag
2013-09-10 16:00:00+00:00 24.613327 0.378690 294.552469 578 0.960366 0.265352 0.146015 GOOD
2013-09-08 07:00:00+00:00 18.609486 0.871618 642.030344 797 0.992215 0.084133 0.081098 GOOD
2013-09-08 09:00:00+00:00 18.401612 1.539226 1044.880005 689 0.970706 0.161717 0.092783 GOOD
2013-09-09 12:00:00+00:00 8.103066 5.511727 896.326129 623 0.966734 0.078114 0.110935 GOOD
2013-09-09 10:00:00+00:00 12.315270 5.789374 1105.664569 467 0.951945 0.197357 0.175704 GOOD
Visualizing the result

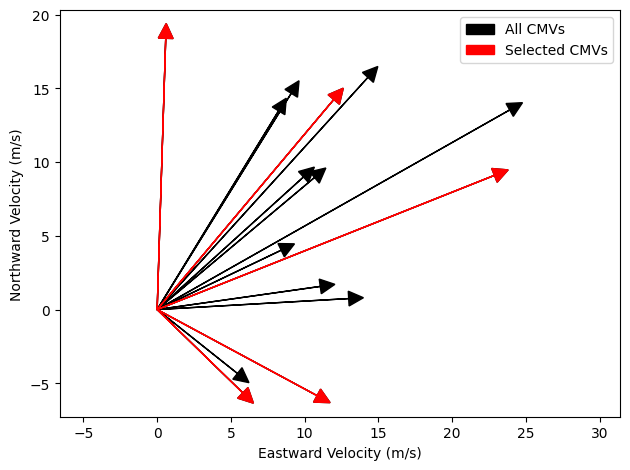

Finally, we have a set of CMVs that are of high quality and represent a broad range of directions so that we are likely to have a good sampling of nearly perpendicular vectors that can be of use for the field analysis methodology. We’ll plot the combination of vectors that passed QC and those that were selected for field analysis just to visualize that process.
[8]:
# Plot the vectors visually
plt.figure()
for i, (dx, dy) in enumerate(zip(vx, vy)):
mylabel = 'All CMVs' if i == 0 else '_nolegend_'
plt.arrow(0, 0, dx, dy, head_width=1, head_length=1, fc='k', label=mylabel)
for i, (dx, dy) in enumerate(zip(vx.iloc[indices], vy.iloc[indices])):
mylabel = 'Selected CMVs' if i == 0 else '_nolegend_'
plt.arrow(0, 0, dx, dy, head_width=1, head_length=1, fc='r', ec='r', label=mylabel)
plt.xlabel('Eastward Velocity (m/s)')
plt.ylabel('Northward Velocity (m/s)')
plt.axis('equal')
plt.legend()
plt.tight_layout()
plt.show()
